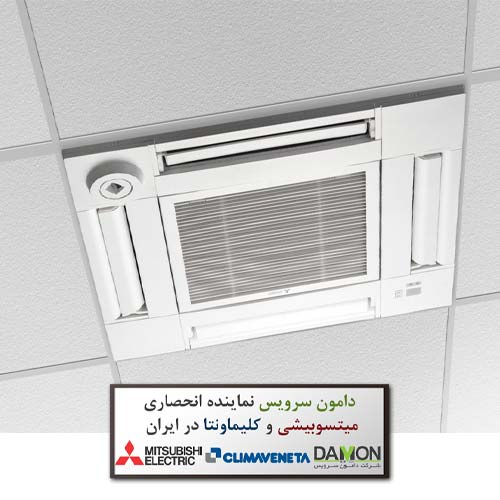

PLP-6EAE / SLP-2FAE
3D i-see Sensor Grille
The PLP-6EAE / SLP-2FAE
3D i-see Sensor Grille is available
for Mr Slim SLZ-M / PLA-ZM / PLA-M
and City Multi VRF PLFY-M-VEM /
PLFY-P-VFM-E range of
ceiling cassettes.
Key Features
- PLP-6EAE / SLP-2FAE
3D i-see Sensor Grille - Human body temperature, room occupancy
and position detection - Energy saving modes
- Direct / indirect vane settings

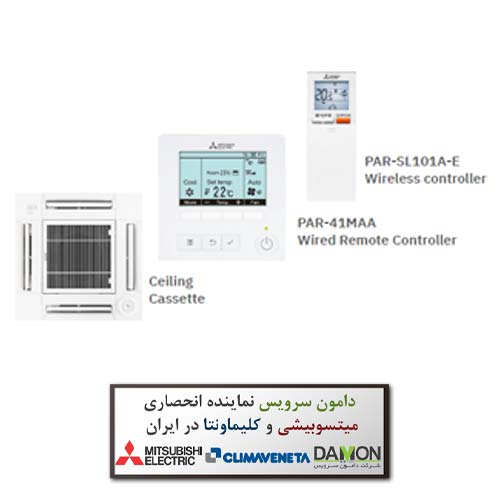

- PAR-41MAA or PAR-SL101-E controllers required
3D i-see Sensor Technology
The Mitsubishi Electric 3D i-see Sensor is one of the most advanced
available on the market. It is uniquely embedded in the grille and
offers the very best demand control of air conditioning available.
The sensor is able to detect not only if a space is occupied, but also
how many people are present. Heating and cooling are adjusted to
the exact requirements of occupants – while also ensuring
energy efficiency.
Detect number of people to save energy
-

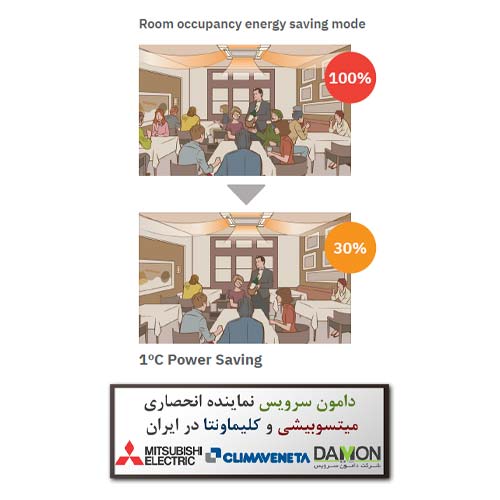

- Room occupancy energy-saving mode
Sensors detect the number of people in the room to calculate
the occupancy rate in order to save air-conditioning power.
Air-conditioning power equivalent to 1°C is saved during
both cooling and heating operation at an occupancy
rate of ~30%.
-

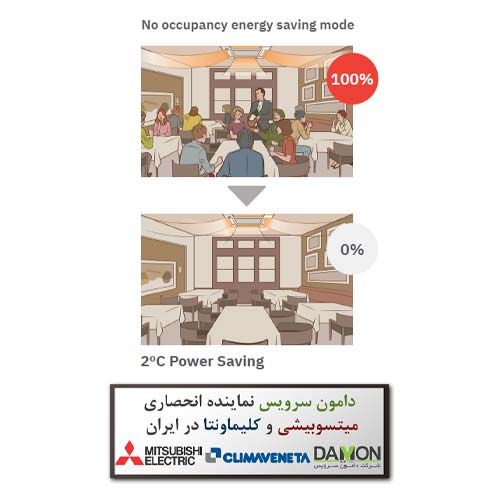

- No occupancy energy-saving mode
The system is switched to a preset power-saving mode if
room is unoccupied.
If the room remains unoccupied for
more than 60min, air-conditioning power equivalent to
2°C is saved during both cooling and heating operation.
-

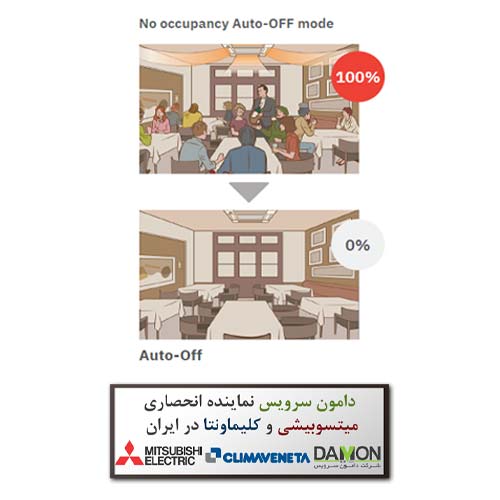

- No occupancy Auto-OFF mode
When the room remains unoccupied for a preset period of time, the air conditioner turns off automatically, providing power savings.
Detects position of people and combines with seasonal air flow to save energy
-

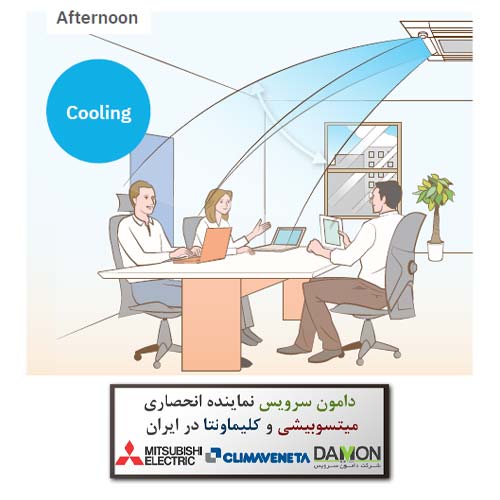

- When cooling
By automatically switching between ventilation and cooling, saves energy while keeping a comfortable effective temperature.
When a pre-set temperature is reached, the air conditioning unit switches to swing fan operation to maintain an effective temperature.
-

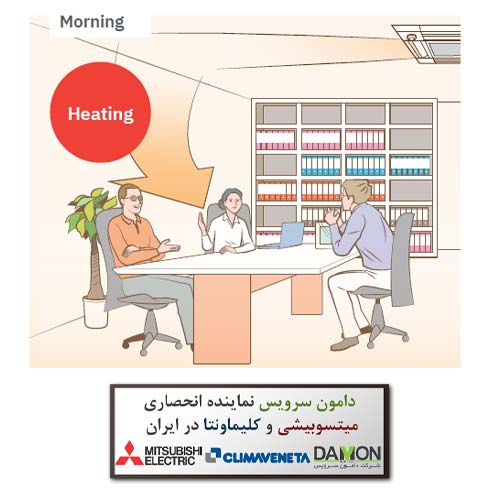

- When heating
The unit automatically switches between circulator and heating.
Heat that accumulates near the ceiling is reused. When a pre-set
temperature is reached the air conditioner blows air in the horizontal direction and pushes down the gathered warm air to people’s height.
With the 3D i-see Sensor, it is possible to choose to block or not block the wind for each vane, allowing for direct/indirect air flow
towards room occupants.
This setting can be accessed via the controller.
Defrost with 3D i-see sensor
If the 3D i-see sensor detects no people or activity, the system actively goes into defrost if required. Occupants wont experience
the effects of the system defrost as a result of this feature.
In situations where defrost is required while heating, the system will
go into defrost even if rooms are occupied. This feature can be accessed via PAR-41MAA Controller.
